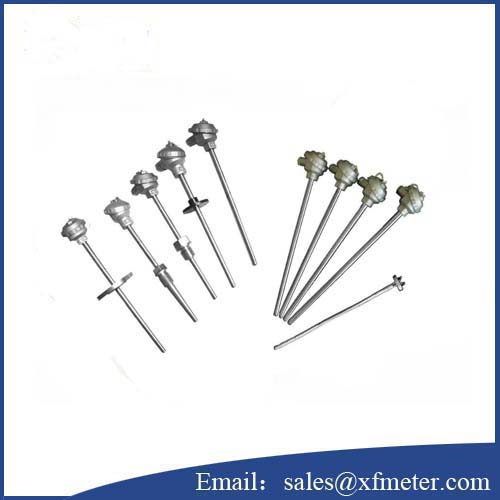

Fixed thread cone thermocouple
Application
Fixed thread cone thermocouple are often used together with display instruments, recording instruments, electronic computers, etc. The fixed thread cone thermocouple directly measures the temperature of steam, liquid, gas medium and solid surface in the range of 0 ℃ -1300 ℃ in various production processes.
Working principle of Fixed thread cone thermocouple
The electrode of the fixed thread cone type assembly thermocouple is composed of two different conductor materials. When there is a temperature difference between the measuring end and the reference end, the thermal potential will be generated, and the working instrument will display the temperature value corresponding to the thermal potential.
Main characteristics of Fixed thread cone thermocouple
1. The fixed thread cone thermocouple is easy to assemble and replace;
2. Fixed thread cone thermocouple pressure spring temperature sensing element, with good seismic performance;
3. The measuring range of fixed thread cone thermocouple is large;
4. Fixed thread cone thermocouple has high mechanical strength and good pressure resistance;

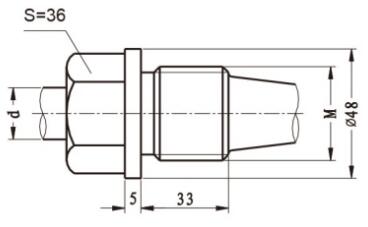

Main technical parameters of Fixed thread cone thermocouple
Product executive standard
IEC584
JB/T9238-1999
Model table
|
Model |
Graduation |
Range of temperature |
Thermal response time |
Material of tube |
Diameter |
Length |
|
WRM-620 WRM2-620 |
N
|
0~800 0~1100 |
＜90s
|
1Cr18Ni9Ti 0Cr25Ni20
|
Φ15
|
300×150 350×200 400×250 450×300 500×350 550×400 650×500
|
|
WRM-620G WRM2-620G |
||||||
|
WRN-620 WRN2-620 |
K |
0~800 0~1100 |
1Cr18Ni9Ti 0Cr25Ni20
|
|||
|
WRN-620G WRN2-620G |
||||||
|
WRE-620 WRE2-620 |
E |
0-800 |
1Cr18Ni9Ti
|
|||
|
WRE-620G WRE2-620G |
||||||
|
WRC-620 WRC2-620 |
T |
0~350
|
1Cr18Ni9Ti
|
|||
|
WRC-620G WRC2-620G |
||||||
|
WRF-620 WRF2-620 |
J |
0~600
|
1Cr18Ni9Ti
|
|||
|
WRF-620G WRF2-620G |
||||||
|

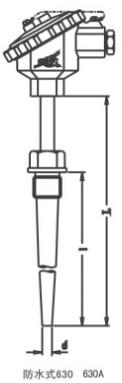

WRM-630 WRM2-630 |
N
|
0~800 0~1100
|
1Cr18Ni9Ti 0Cr25Ni20
|
|||
|
WRM-630G WRM2-630G |
||||||
|
WRN-630 WRN2-630 |
K
|
0~800 0~1100
|
1Cr18Ni9Ti 0Cr25Ni20
|
|||
|
WRN-630G WRN2-630G |
||||||
|
WRE-630 WRE2-630 |
E
|
0-800
|
1Cr18Ni9Ti
|
|||
|
WRE-630G WRE2-630G |
||||||
|
WRC-630 WRC2-630 |
T
|
0~350
|
1Cr18Ni9Ti
|
|||
|
WRC-630G WRC2-630G |
||||||
|
WRF-630 WRF2-630 |
J |
0~600
|
1Cr18Ni9Ti
|
|||
|
WRF-630G WRF2-630G |
