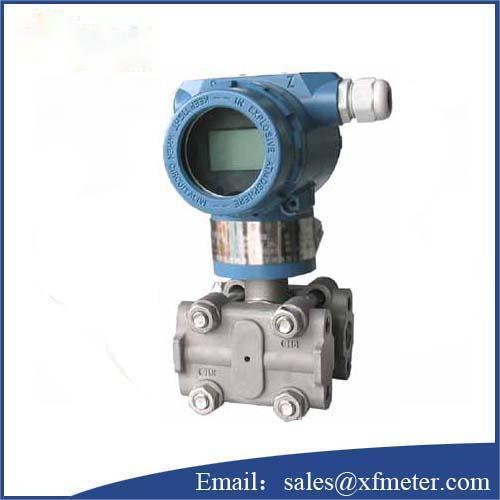

3151AP Pressure transmitter

3151AP Pressure transmitter

Overview

3151AP Pressure Transmitter adopts advanced chips with super-class craft and compact structure, solid, light, easy to install and convenient to use, maintenance-free; zero and range are adjustable continuously outside, drift range is wide; applicable to various occasions like whole day long harsh and dangerous environment with kinds of corrosive medium; can measure any gas and liquid, corrosive or not. Widely used in aviation, petroleum, chemical industry, metallurgy, electricity, light industry and mechanical field etc.

Features

3151AP Pressure transmitter

Microprocessor makes it more flexible and powerful;

With strong self-diagnose performance, zero and range regulation don’t influence each other;

With perfect remote and local set and calibration functions;

Two-wire system which is in accordance with HART PROTOCOL, can communicate with HART PROTOCOL terminal without interrupting output;

Digital compensation which can compensate to temperature and static pressure;

With good stability performance and high-accuracy, damping is adjustable, strong one-way overload resistant capacity;

Without mechanical driving components which reduce maintenance, solid and vibration-resistant;

Components are in common use which is easy for maintenance;

Wetted parts diaphragm material is optional and can be used for a day long.

Main tech data

Range: 0-100Pa～500MPa；-100～0kPa

Pressure: gauge pressure, absolute pressure and negative pressure

Compensation temperature: -10～70℃  working temperature: -20～85℃

Accuracy: 0.1% 、0.25% 、0.5% 、1%

Output: 4～20mA 、0～10mA 、1～5V 、0～5V DC

Power: 24V DC 、15V DC 、220V AC

Medium: liquid, gas and steam

Note:Any special design or question of 3151AP Pressure transmitter ,kindly contact the manufacturer for more details.
