Temperature transmitter

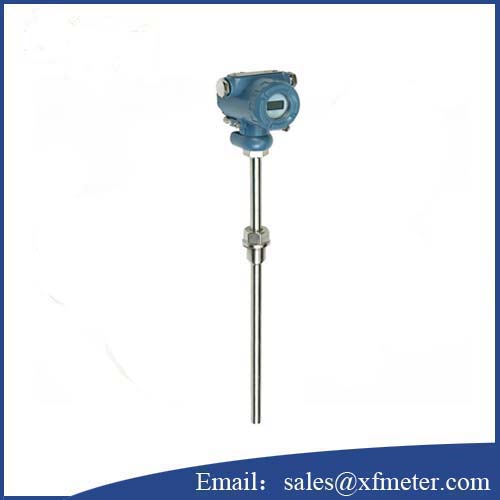

WZCB-241M WZCB-241S WZCB-241GM WZCB-241GS Temperature transmitter

Model: WZCB-241M WZCB-241S WZCB-241GM WZCB-241GS
Graduation: Cu50, Cu100
Range: -50~100℃
Material:Stainless steel
Description: WZCB-241M WZCB-241S WZCB-241GM WZCB-241GS temperature transmitter from China, which has good quality and high steady performance.
INQUIRY EMAIL

WZCB-241M WZCB-241S WZCB-241GM WZCB-241GS Explosion-proof resistance with temperature transmitter

Application

WZCB-241M WZCB-241S WZCB-241GM WZCB-241GS Explosion-proof resistance with temperature transmitter is usually used along with display instruments, recording instruments, electronic computers and so on, outputting 4~20mA electricity. It is able to directly measure the temperature of liquid, steam and gas and solid surface within the range of -200℃~1300℃ in the production field where there are explosives. such as carbon and chlorine compounds.

Working principle of WZCB-241M WZCB-241S WZCB-241GM WZCB-241GS Explosion-proof resistance with temperature transmitter

Explosion-proof resistance uses the principle of interval explosion-proof. When the explosion occurs inside the cavity, the flame of the explosion can be cooled and distinguished in the gapbetween the joint surface so that the flame and the temperature will not be passed to the cavity. Finally, the explosion-proof is realized. The electric potential produced by thermal resistance will generate the unbalanced signal through the bridge of temperature transmitter. After being amplified, it will be converted into 4~20mA DC electrical signal and sent to the working instrument which will display the corresponding temperature value.

Characteristics of WZCB-241M WZCB-241S WZCB-241GM WZCB-241GS Explosion-proof resistance with temperature transmitter of WZCB-241M WZCB-241S WZCB-241GM WZCB-241GS Explosion-proof resistance with temperature

1.Output 4~20mA by second-tier system with strong anti-interference ability;

2.It saves the costs of compensation wire and the installation of temperature transformer;

3.It is safety and reliable with long service life:

4.Temperature automatic compensation in the cold end with nonlinear correction circuit;

Model type of WZCB-241M WZCB-241S WZCB-241GM WZCB-241GS Explosion-proof resistance with temperature

Model	Graduation	Temperature range	Thermal response time	Explosion-proof grade	Specification
					d	L
WRMB-240M WRMB-240S WRMB-240GM WRMB-240GS	N	0-1300	＜90s ＜24s	dIIBT4 dIICT5 dIICT6 iaIICT6	16	300 350 400 450 500 550 650 900 1150 1650 2150
WRNB-240M WRNB-240S WRNB-240GM WRNB-240GS	K	0-1300	＜90s ＜24s
WZCB-241M WZCB-241S WZCB-241GM WZCB-241GS	Cu50 Cu100	-50~100	＜120s ＜24s		12
WZCB-240M WZCB-240S WZCB-240GM WZCB-240GS					16
WREB-240M WREB-240S WREB-240GM WREB-240GS	E	0-800	＜90s ＜24s
WRCB-240M WRCB-240S WRCB-240GM WRCB-240GS	T	0~350	＜90s ＜24s
WRFB-240M WRFB-240S WRFB-240GM WRFB-240GS	J	0-600	＜90s ＜24s

Main tech data

Graduation: Cu50, Cu100

Range: -50~100℃

Material:Stainless steel

Diamter；16

Install: Fixed crew thread

Note:Any special design or question of WZCB-241M WZCB-241S WZCB-241GM WZCB-241GS Explosion-proof resistance with temperature , kindly contact the manufacturer for more details.
