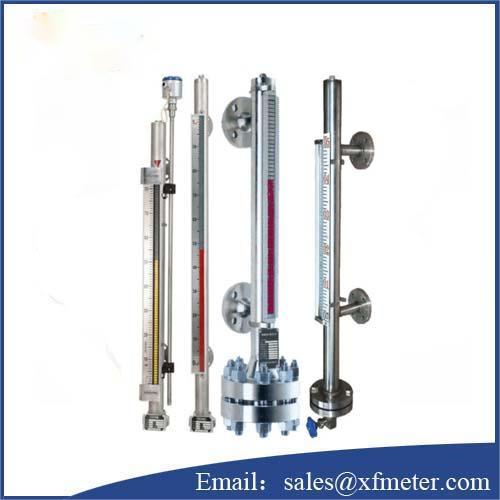

Overview of UHZ-10D UHZ-10D00 UHZ-10R00 Magnetic level meter

Model UHZ-10D is top mounted type, UHZ-10D00 is top mounted, UHZ-10R00 is inserted type, magnetic level meter is produced and improved based on the advanced technology of same kind products. It is produced accord with Chinese Chemical Industrial Standard HG/T21584-95.

A transducer is consisted of resistance, reed switch and transducer module. The magnetic float’s position changes with the liquid level, which will make the reed switch change its status accordingly, and this change decides the resistance of the current circuit.When the transducer module gets the change of resistance, it will turn it into a 4-20mA current output signal.

Features of UHZ-10D UHZ-10D00 UHZ-10R00 Magnetic level meter

1. Simple structure, the user can see the liquid level directly.

2.  Reliable design, free of maintenance.

3. Work with no need of power supply.

4. No effect from the high temperature, flowing, flammable, and poisonous of liquid.

5. Can be used for the appliction of high temperature and high pressure.

6. Anticorrosive, can be used to measure most caustic liquid.

7. Suitable for measuring level of liquid with low specific gravity

Main tech data of UHZ-10D UHZ-10D00 UHZ-10R00 Magnetic level meter

Specifics of UHZ-10D UHZ-10D00 Magnetic level meter

Chamber dimension:Ф60×2mm

Top of chamber: Top soldering

Process connection: GB standard flange,DN100PN1.6 Can be customer ordered.

Float: Orbicular or columnar

Material: SS, 316L or 304 UPVC, PP or ABS

Rated pressure: Max. 1.0MPa

Temperature: SS: -20～+150℃

Plastic: -20～+60℃

Other option: Magnetic switch

Specifics of UHZ-10R00 Magnetic level meter

Junction box: ABS

Material: SS Conduit φ12mm

Range: Max 2000mm(Consult factory for larger range.)

Float: φ50mm

Min S.G.: 0.78g/cm3

Pressure: 1.6MPa (consult factory for higher pressure.)

Flange: DN50PN1.6

Resolving power: 10mm

Max temperature: 120℃

Note: Any special design or question of UHZ-10D UHZ-10D00 UHZ-10R00 Magnetic level meter, kindly contact the manufacturer for more details.
