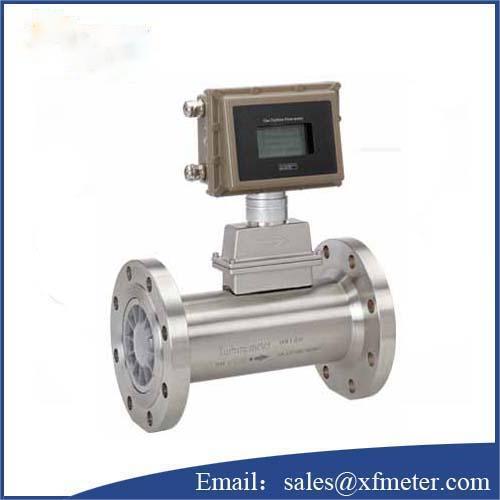

LWQ-100 Gas turbine flowmeter

LWQ-100 Gas turbine flowmeter

Overview

LWQ-100 Gas turbine flowmeter is a new generation of high-precision, high-reliability gas precision measurement that integrates temperature, pressure, flow sensors and intelligent flow totalizers, which is self-developed by integrating the theory of gas mechanics, fluid mechanics, and electromagnetics.

Working principle

LWQ-100 Gas turbine flowmeter, when the gas enters the flowmeter, it is first accelerated by a special rectifier. Under the action of the fluid, the turbine begins to rotate against the resistance torque and the friction torque. When the torque reaches equilibrium, the speed is stable, and the speed of the turbine is proportional to the gas flow and rotates

Features

1.,Network communication system,

2,The main performance indicators have reached the international advanced level, in line with ISO9951 standard

3,High accuracy, good stability, wide range

4,Unique reverse thrust structure and sealing structure design to ensure long-term reliable operation of bearings

Main tech data

Measuring medium: natural gas, city gas and other gas, alkane and industrial inert gas

4mA ~ 20mA standard

Protection level: IP65

Ambient temperature: -30 ℃ ~ + 60 ℃;

Medium temperature: -20 ℃ ~ + 80 ℃;

Atmospheric pressure: 70kPa ~ 106kPa;

Relative humidity: 5% ~ 95%.

Note:Any special design or question of LWQ-100 Gas turbine flowmeter, kindly contact the manufacturer for more details.
