  • YXC-150B-F Electric contact pressure gauge

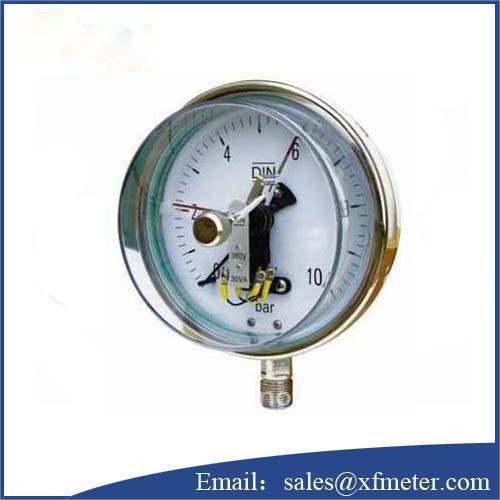

YXC-150B-F Electric contact pressure gauge

YXC-150B-F Electric contact pressure gauge

  • Model:YXC-150B-F
  • Working temperature: -25 ℃ ~ 55 ℃
  • Structure: Axial, radial
  • Material:Stainless steel
  • Description: XUNFEI Meter is professional manufacturer of YXC-150B-F electric contact pressure gauge from China, which has good quality and high steady performance. Welcome to inquiry with us.

YXC-150B-F Electric contact pressure gauge


YXC-150B-F Electric contact pressure gauge is widely used in petroleum, chemical, metallurgy, power station, machinery and other industrial sectors or in the matching of electromechanical equipment to measure the pressure of various fluid media without explosion hazard.Tthe instrument can be used to automatically control and send signals (alarms) to various gases and liquid media under pressure (controlled) after being used with corresponding electrical devices (such as relays and inverters)

Working Principle

YXC-150B-F Electric contact pressure gauge indicates the measured value one by one on the dial. At the same time, when it comes into contact with the contact on the set pointer  the circuit in the control system can be disconnected or connected to achieve automatic control and development. The purpose of the letter alarm. is based on the spring tube in the measuring system under the pressure of the measured medium, forcing the end of the spring tube to produce a corresponding elastic deformation-displacement, which is transmitted through the gear transmission mechanism and amplified by the tie rod.


1,Simple installation and low maintenance

2,Reliable action, long service life, large contact switch power

3,Novel design and reliable structure

4,Complete varieties and specifications, good action stability, strong adaptability

Main tech data

1,Working temperature: -25 ℃ ~ 55 ℃

2,Maximum power: 30W

3,Working environment vibration frequency is not greater than 25Hz, amplitude is not greater than 0.5mm

4,Material: copper alloy, 304 stainless steel or 316 stainless steel

5,Working pressure upper limit: not more than 2/3 of the upper limit of the instrument

Note: Any special design or question of YXC-150B-F Electric contact pressure gauge, kindly contact the manufacturer for more details.
