Assembly RTD

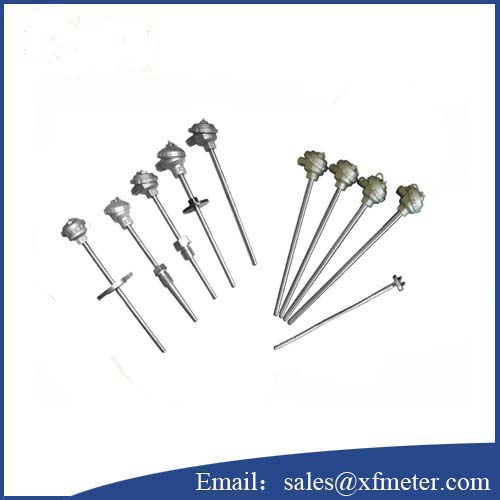

  • WZP2-330 WZP2-331 Assembly RTD
WZP2-330 WZP2-331 Assembly RTD

WZP2-330 WZP2-331 Assembly RTD

  • Model: WZP2-330 WZP2-331
  • Grading:Pt100
  • Measuring range: -200~500
  • Diameter: 16mm
  • Description: WZP2-330 WZP2-331 assembly RTD, Assembly PT100 from China, which has good quality and high steady performance. Welcome to inquiry with us.

WZP2-330 WZP2-331 Assembly RTD


WZP2-330 WZP2-331 Assembly RTD is usually used with display instruments, recording instruments and electronic regulators. It can directly measure liquid, steam and gas media and solid surfaces in the range of -200 degrees to 420 degrees in various production processes temperature.

Working principle

WZP2-330 WZP2-331 Assembly RTD uses the characteristics of the substance's own resistance with the change of temperature to measure the temperature. Its temperature-sensing element is made of thin metal wire evenly wound on the skeleton made of insulating material. When the measured medium has a temperature gradient, the measured temperature is the average temperature in the dielectric layer within the range of the temperature-sensing element.

Features of WZP2-330 WZP2-331 Assembly RTD

1, Good resistance element performance

2, Do not compensate for wires, saving costs

3, High mechanical strength and good pressure resistance

4, Temperature sensing element is compression spring type, good vibration resistance

5, High measurement accuracy

Main tech data of WZP2-330 WZP2-331 Assembly RTD

1, Three-wire system

2, Pt100 and Cu50

3, Product implementation standard: IEC60751, GB/T30121-2013

4,WiringSingle wiring and double branch wiring

5, Junction box form: Waterproof and Explosion-proof

Note: Any special design or question of WZP2-330 WZP2-331 Assembly RTD, kindly contact the manufacturer for more details.
