Thermal sleeve RTD

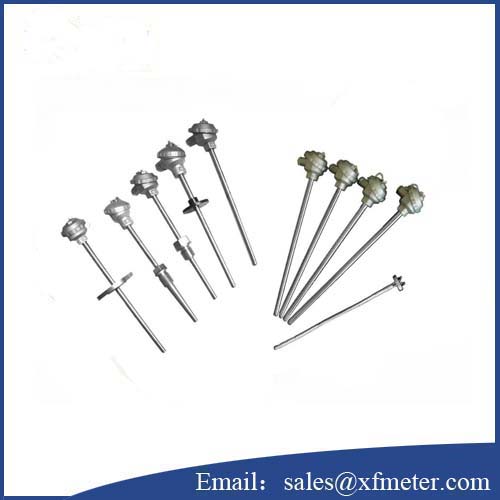

WZP-013T WZP2-013T WZP-014T WZP2-014T Thermal sleeve RTD

Model: WZP-013T WZP2-013T WZP-014T WZP2-014T
Graduation: PT100
Range: -200~500
Level: Class A, Class B
Description: WZP-013T WZP2-013T WZP-014T WZP2-014T thermal sleeve RTD, thermal sleeve PT100 from China, which has good quality and high steady performance.
INQUIRY EMAIL

WZP-013T WZP2-013T WZP-014T WZP2-014T Thermal sleeve RTD is used for temperature measurement of power plant pipes and also used for temperature measurement of other industrial departments, which shall meet the requirements of JB / t9238t and JB / t8622-1997.matched with the display instrument to directly measure and control the temperature of gas, liquid and steam in the production process.

Model type of WZP-013T WZP2-013T WZP-014T WZP2-014T Thermal sleeve RTD

Model	Graduation	Range of measurement	Nominal pressure	Flow rate	Specification
WZP-012T WZP2-012T	PT100	Class A -30~300 Class B -50~500	≤38Mpa	≤80m/s	440230 640430 840630 13401130
WZP-012AT WZP2-012AT
WZP-013T WZP2-013T					38050 430100
WZP-014T WZP2-014T					28050 330100 380150 430200
WZP-015T WZP2-015T

Main tech data

Graduation: PT100

Range: -200~500

Level: Class A, Class B

Error-tolerance value: ±（0.15+0.002ltl）±（0.30+0.005ltl）

Note: Any special design or question of WZP-013T WZP2-013T WZP-014T WZP2-014T Thermal sleeve RTD, kindly contact the manufacturer for more details.
