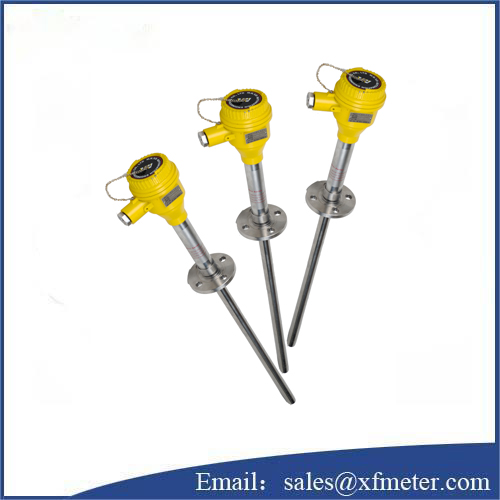

WRNN2-130 Abrasion resistant thermocouple
WRNN2-130 Abrasion resistant thermocouple is suitable for the production site with high wear-resistant solid particles or fluids. It has high oxidation resistance, high temperature resistance, vibration resistance and wear resistance. Widely used in power plants, cement plants, oil refineries and other occasions with high requirements for scouring.
The electrode of WRNN2-130 Abrasion resistant thermocouple consists of two different conductor materials. When there is a temperature difference between the measuring end and the reference end, the thermoelectric potential will be generated, and the working instrument will display the temperature value corresponding to the thermoelectric potential.
1, Good toughness and impact resistance
2, High sensitivity
3, Excellent craftsmanship
Main tech data
1, Temperature measuring range: 0-1000℃
2, Graduation: K
3, Allowable deviation: ±2.5℃或±0.75%t
4, Installation structure: Mounting flange
5, Electrical outlet:1.5NPT1/2*M20
6, Nominal pressure:2.5Mpa
Note: Any special design or question of WRNN2-130 Abrasion resistant thermocouple , kindly contact the manufacturer for more details.
