Explosion proof thermocouple

  • WRN-240 WRN2-240 WRN-440 WRN2-440 Explosion proof thermocouple

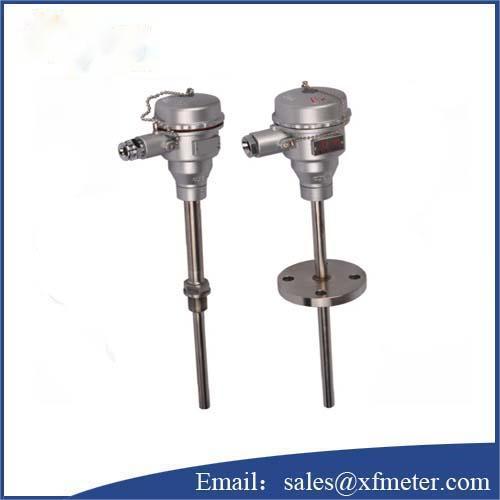

WRN-240 WRN2-240 WRN-440 WRN2-440 Explosion proof thermocouple

WRN-240 WRN2-240 WRN-440 WRN2-440 Explosion proof thermocouple

  • Description: WRN-240 WRN2-240 WRN-440 WRN2-440 explosion proof thermocouple from China, WRN-240 WRN2-240 WRN-440 WRN2-440 explosion proof thermocouple has good quality and high steady performance.
  • INQUIRY   EMAIL

WRN-240 WRN2-240 WRN-440 WRN2-440 Explosion proof thermocouple

Working principle

WRN-240 WRN2-240 WRN-440 WRN2-440 Explosion proof thermocouple, Seal all parts that can produce sparks, arcs and dangerous temperatures in the junction box. When explosion occurs in the cavity, it can be flamed out and cooled through the gap of the joint surface, so that the flame and temperature after explosion cannot be transmitted outside the cavity, so as to conduct explosion-proof.uses the principle of gap explosion-proof to design the junction box and other components with sufficient strength.

Features of WRN-240 WRN2-240 WRN-440 WRN2-440 Explosion proof thermocouple

High mechanical strength, good pressure resistance

Good explosion-proof performance and various explosion-proof forms

Temperature sensing element is spring loaded, with good vibration resistance

The temperature range is large

Main tech data of WRN-240 WRN2-240 WRN-440 WRN2-440 Explosion proof thermocouple

Explosion-proof gradedⅡBT4 ,dⅡCT5 , iaⅡCT6

Protection level: Ip65

Humidity: No more than 85%


Product implementation standard

IEC584, GB/T16839-1997, GB26786-2011, GB3836

Insulation resistance in normal temperature

For thermocouple, the environment temperature is 20 + 15 , the relative humidity is not more than 80%, the test voltage is 500 + 50V(DC), the insulation resistance between electrode and outer sleeve1000MΩ.m.

Temperature groups of explosion-proof thermocouple is divided into 85-450 according to maximum surface temperature of the exposed part


Note: Any special design or question of WRN-240 WRN2-240 WRN-440 WRN2-440 Explosion proof thermocouple, kindly contact the manufacturer for more details.
