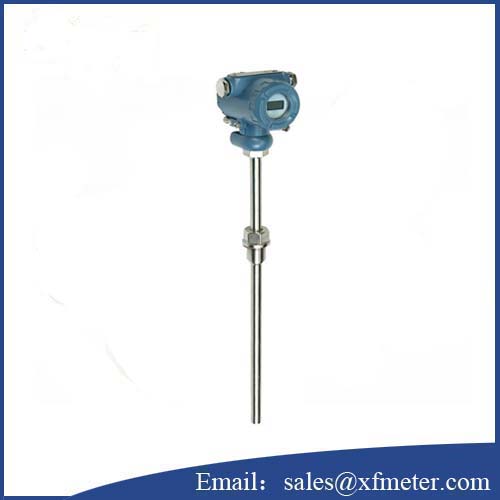

SBWZ-2480/431 Temperature transmitter

SBWZ-2480/431 Integrated temperature transmitter

Overview

SBWZ-2480/431 Integrated temperature transmitter, temperature of liquid, steam and gas medium in the range of -200-1600 degree in industrial production, convert the signal into 4-20mA unified output, and display , Used in petroleum, electricity, food, textile and other industries.

Feature

SBWZ-2480/431 Integrated temperature transmitter

1,High precision, low energy consumption, wide ambient temperature range, stable and reliable operation.

2,Direct output of 4-20mA at the industrial site not only saves the compensation line, but also improves the anti-interference ability during transmission.

3,Adopt silicon rubber seal structure, the transmitter is resistant to humidity and shock, suitable for use in harsh field environment.

4,Wide application, not only can be installed in the equipment alone, but also can form an integrated device with the temperature instrument.

Main tech data

1,Input: Thermal resistance:pt100

Thermocouple:K,E,S,B,T,N

2,Output: output 4-20mA DC signal within the range

3,Transmission method: two-wire system

4,Installation and fixing device: straight protection tube fixing thread, conical protection tube fixing thread, fixing flange

Note:Any special design or question of SBWZ-2480/431 Integrated temperature transmitter , kindly contact the manufacturer for more details.
