Temperature transmitter

  • SBWR-4160 Temperature transmitter

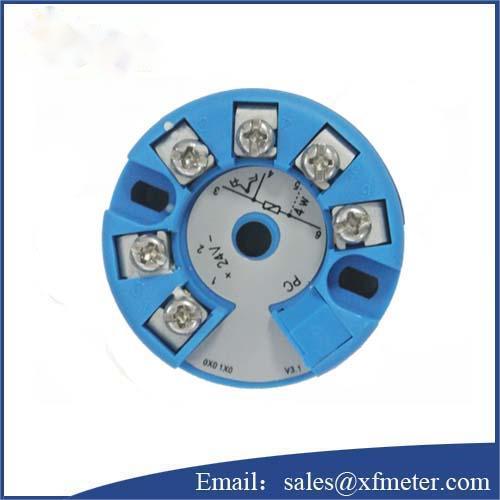

SBWR-4160 Temperature transmitter

SBWR-4160 Temperature transmitter

  • Model:SBWR-4160
  • Graduation:Pt100
  • Operating temperature: -25℃~80℃
  • Output:4~20mA
  • Description: XUNFEI Meter is professional manufacturer of SBWR-4160 temperature transmitter from China, which has good quality and high steady performance. Welcome to inquiry with us.

SBWR-4160 Temperature transmitter


SBWR-4160 Temperature transmitter uses a temperature meter as the temperature measuring element. It is often used in the field temperature measurement process control of petroleum, chemical industry, chemical fiber, textile, rubber, building materials, electric power, metallurgy, medicine, food and other industrial fields, especially suitable for computer measurement and control system, and can also be used in conjunction with the instrument.

Working principle

SBWR-4160 Temperature transmitter The output signal from the temperature measuring element is sent to the transmitter module. After being processed by the voltage stabilizing filter and operational amplification circuit, it is converted into a 4-20mA current signal that is linearly related to the temperature. 0-5V / 0-10V voltage signal, RS485 digital signal output.


1,It is installed in the junction box of the temperature instrument on site, and directly outputs 4-20mA, which not only saves the compensation wire, but also improves the anti-interference ability during transmission.

2,High precision, low energy consumption, wide ambient temperature range, stable and reliable operation.

3,Wide application, not only can be installed in the equipment alone, but also can form an integrated device with the temperature instrument.

Main tech data

1,Transmission method: two-wire system

2,Output: 4-20mA DC signal

3,Basic error:±0.5%FS

4,Circuit category: isolated, non-isolated

5,Installation method: conventional type, special type, wall-mounted type, rail type

6,Transmitter level: conventional type, intelligent type, digital display type, pointer type, intelligent digital display type, intelligent pointer type, etc.

Note: Any special design or question of SBWR-4160 Temperature transmitter,kindly contact the manufacturer for more details.
