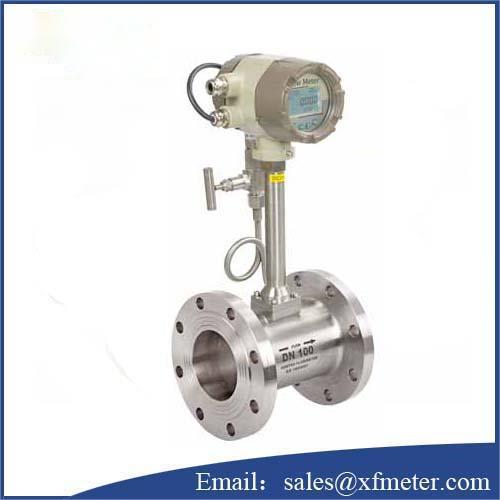

LUGB LUGB-15 LUGB-20 LUGB-25 Vortex flow meter

LUGB LUGB-15 LUGB-20 LUGB-25 Vortex flow meter

Overview

LUGB LUGB-15 LUGB-20 LUGB-25 Vortex flow meter is mainly used for flow measurement of industrial pipeline fluid, such as gas, liquid, vapor and other media. It is characterized by small pressure loss, large measuring range, and high accuracy. It is hardly affected by fluid density, pressure, temperature, viscosity and other parameters when measuring volume flow under working conditions. There are no movable mechanical parts, so the reliability is high and the maintenance is small.

Main tech data of LUGB LUGB-15 LUGB-20 LUGB-25 Vortex flow meter

◆Caliber specifications: flange card-mounted caliber selection 25, 32, 50, 80, 100

◆Flange connection type diameter selection 100, 150, 200

◆Flow measurement range Normal measurement velocity range Reynolds number 1.5×104~4×106; gas 5~50m/s; liquid 0.5~7m/s

Normal measurement flow range The liquid and gas flow measurement range is shown in Table 2; the steam flow range is shown in Table 3

◆The temperature of the measured medium: normal temperature –25℃~100℃

◆High temperature –25℃~150℃ -25℃~250℃

◆Output signal Pulse voltage output signal High level 8~10V Low level 0.7~1.3V

◆The pulse duty cycle is about 50%, and the transmission distance is 100m

◆Pulse current remote transmission signal 4-20 mA, transmission distance is 1000m

◆Instrument use environment Temperature: -25℃~+55℃ Humidity: 5~90% RH50℃

◆Material Stainless steel, aluminum alloy

◆Power supply DC24V or lithium battery 3.6V

◆Explosion-proof grade Intrinsically safe type iaIIbT3-T6

Note: Any special design or question of LUGB LUGB-15 LUGB-20 LUGB-25 Vortex flow meter, kindly contact the manufacturer for more details.
